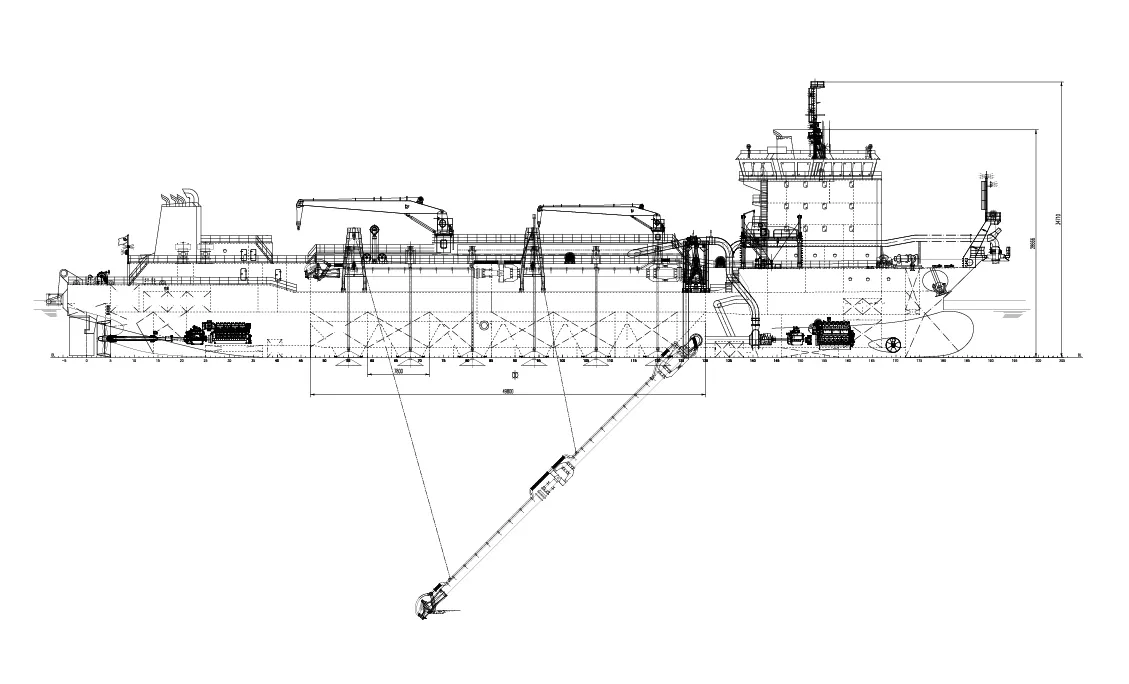

6500 m³/h Trailing Suction Hopper Dredger (TSHD)
The 6500 m³/h Trailing Suction Hopper Dredger is a versatile vessel built for medium-scale harbor, coastal, river, and reclamation projects. It delivers stable performance, strong suction capability for medium to soft sediments, and advanced navigation and automation systems. This model balances high efficiency with fuel economy and operational reliability, making it ideal for precision work over extended periods.
The 6500 m³/h Trailing Suction Hopper Dredger is a versatile vessel built for medium-scale harbor, coastal, river, and reclamation projects. It delivers stable performance, strong suction capability for medium to soft sediments, and advanced navigation and automation systems. This model balances high efficiency with fuel economy and operational reliability, making it ideal for precision work over extended periods.
— Technical Specifications
| Item | Parameter |
| Dredging capacity | ~6,500 m³/day |
| Dredging depth | 15 – 22 m (typical) |
| Hull length (LOA) | 60 – 75 m |
| Beam (Width) | 12 – 16 m |
| Draft | 2.5 – 4.0 m |
| Displacement / Deadweight | 2,000 – 4,000 t (approx.) |
| Hopper / Tank capacity | Depending on design (larger than 5000 m³ type) |
| Dredge pump type | Heavy-duty centrifugal slurry pump |
| Pump flow rate | 1,000 – 2,000 m³/h (single pump) |
| Pump head (delivery) | 30 – 85 m |
| Suction pipe diameter | 350 – 500 mm |
| Maximum pumping distance | 1,500 – 2,000 m (with booster optional) |
| Power system | Diesel engines, total 3,000 – 5,000 kW |
| Winches | 3 – 5 sets, pull force 100 – 250 kN |
| Navigation speed | 8 – 12 knots |
| Crew capacity | 12 – 20 persons |
| Control system | PLC + HMI, GPS/RTK positioning, depth sounding |
| Classification | IACS member class (ABS / DNV / LR, or as required) |
| Safety & Environment | SOLAS / MARPOL compliant, oil-water separator, fire-fighting system |
— Application
1. Inland & Nearshore Channel Maintenance
- Maintaining river, lake, and nearshore channel depths for navigational safety.
2. Coastal Port Dredging
-Optimizing berth depth and waterway access for medium-scale ports.
3. Deep-Water Channel Expansion
-Widening and deepening main channels to accommodate larger vessels, improving navigability and safety.
4. Offshore Works & Land Reclamation
-Supporting offshore structures like wind farms and oil & gas platforms.
-Excavating, transporting, and placing sand for land reclamation projects.
— Key Features / Advantages & Customization
- Technical Configuration:
Optional submerged pump installation can increase dredging depth by 30–50%, enhancing deep-water operation capability.
- Geological Adaptability:
Efficient cutting and transport in medium to soft sediments; power adjustment possible for harder soil.
- Environmental Compliance:
Meets EU Tier III standards; power optimization allows balance of emissions and efficiency.
- Stable performance for long-term operations; advanced navigation systems; optimized fuel consumption.
- High suction capacity suitable for medium sediments.
