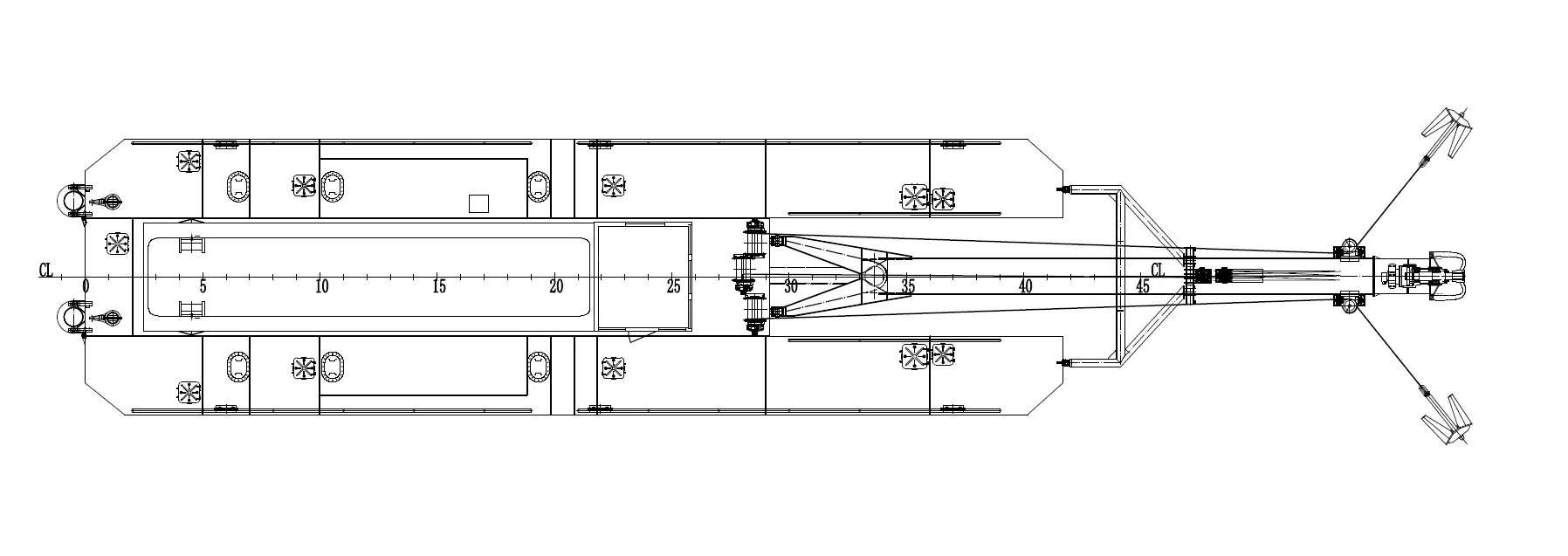

Cutter Suction Dredger JLCSD400
The dredger is capable of performing dredging, conveying, and discharging of mud and sand efficiently. The dredge pump is driven by the main diesel engine through a reducing gearbox, while the auxiliary diesel engine drives the alternator to supply electricity for the dredger’s power and lighting needs. Generator sets provide emergency power when the dredger is not in operation. The cutter head is driven by a hydraulic motor, and the cutter bearing is equipped with a lubrication seal-in unit for stable operation.
The dredger is capable of performing dredging, conveying, and discharging of mud and sand efficiently. The dredge pump is driven by the main diesel engine through a reducing gearbox, while the auxiliary diesel engine drives the alternator to supply electricity for the dredger’s power and lighting needs. Generator sets provide emergency power when the dredger is not in operation. The cutter head is driven by a hydraulic motor, and the cutter bearing is equipped with a lubrication seal-in unit for stable operation.
— Technical Specifications
|
JLCSD400 Cutter Suction Dredger General Specifications |
|||
|
OA Length(Ladder included) |
31m |
Flow Capacity |
2200m³/hr |
|
Hull Width |
6.2m |
Standard Dredging Depth |
14m |
|
Hull Depth |
1.8m |
Discharge Distance |
1200m |
|
Draft |
1.2m |
Suction Pipe Diameter |
400mm |
|
Cutter Head Power |
100kw |
Discharge Pipe Diameter |
400mm |
|
Engine Power |
895kw |
Customized Design is Available |
|
— Application
Perfect for construction dredging, this model dredges, conveys, and discharges mud and sand efficiently. Its diesel-powered dredge pump and hydraulic cutter head ensure stable operation for heavy-duty projects.
— Advantage
High output and far pumping distance for construction dredging.
Completely assembled and tested before delivery.
Easy installation and transportation with dismantle structure.
Standard spare parts available globally for quick replacement.
Operation guided by experienced engineers for safe use.
— Service
Design & Engineering: Optimized for construction dredging projects.
Pre-Delivery Testing: Pool-tested before shipment to ensure full functionality.
On-Site Installation: Expert engineers handle assembly and commissioning.
Operation Training: Practical operation and maintenance training for staff.
Maintenance & Repair: Long-term maintenance and free warranty repairs.
Spare Parts & Upgrades: High-quality spare parts and upgrade options available.
— Technical Specifications
|
JLCSD400 Cutter Suction Dredger General Specifications |
|||
|
OA Length(Ladder included) |
31m |
Flow Capacity |
2200m³/hr |
|
Hull Width |
6.2m |
Standard Dredging Depth |
14m |
|
Hull Depth |
1.8m |
Discharge Distance |
1200m |
|
Draft |
1.2m |
Suction Pipe Diameter |
400mm |
|
Cutter Head Power |
100kw |
Discharge Pipe Diameter |
400mm |
|
Engine Power |
895kw |
Customized Design is Available |
|
— Application
Perfect for construction dredging, this model dredges, conveys, and discharges mud and sand efficiently. Its diesel-powered dredge pump and hydraulic cutter head ensure stable operation for heavy-duty projects.
— Advantage
High output and far pumping distance for construction dredging.
Completely assembled and tested before delivery.
Easy installation and transportation with dismantle structure.
Standard spare parts available globally for quick replacement.
Operation guided by experienced engineers for safe use.
— Service
Design & Engineering: Optimized for construction dredging projects.
Pre-Delivery Testing: Pool-tested before shipment to ensure full functionality.
On-Site Installation: Expert engineers handle assembly and commissioning.
Operation Training: Practical operation and maintenance training for staff.
Maintenance & Repair: Long-term maintenance and free warranty repairs.
Spare Parts & Upgrades: High-quality spare parts and upgrade options available.
