USED TSHD1

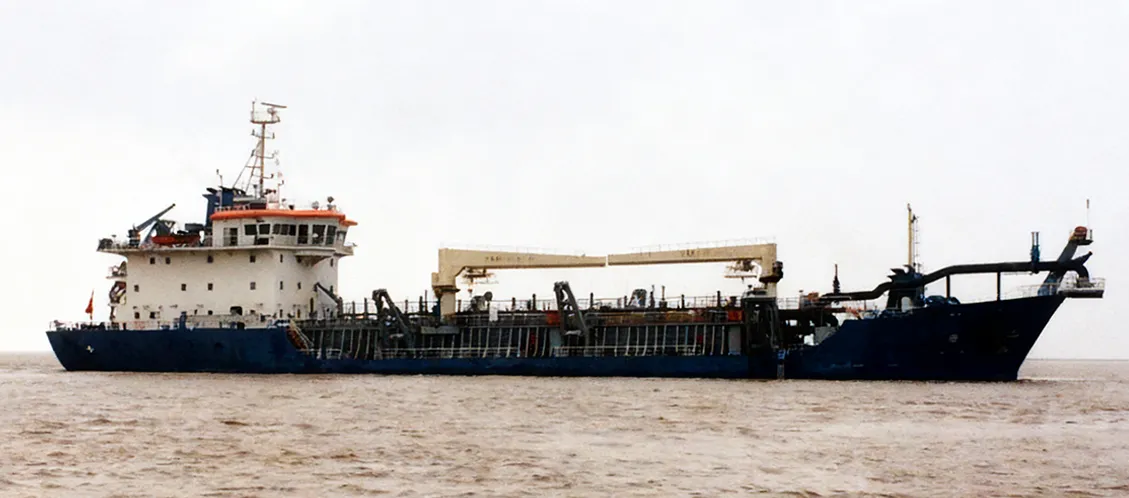

TSHD 3 is a 4,600 m³ self-propelled trailing suction hopper dredger designed by Shanghai Shipyard and built in 2012.
The vessel adopts the latest CCS standards and integrates advanced technology, achieving a high degree of automation, energy efficiency, and operational precision.
Equipped with twin engines, dual dredge pumps, and a bow-blowing system, it enables efficient dredging and flexible material discharge.
With satellite-based dredging monitoring software and centralized control, the vessel offers high dredging accuracy, low fuel consumption, and reliable performance for coastal dredging and reclamation works.
TSHD 3 is a 4,600 m³ self-propelled trailing suction hopper dredger designed by Shanghai Shipyard and built in 2012.
The vessel adopts the latest CCS standards and integrates advanced technology, achieving a high degree of automation, energy efficiency, and operational precision.
Equipped with twin engines, dual dredge pumps, and a bow-blowing system, it enables efficient dredging and flexible material discharge.
With satellite-based dredging monitoring software and centralized control, the vessel offers high dredging accuracy, low fuel consumption, and reliable performance for coastal dredging and reclamation works.
— Technical Specifications
| Item | Specification |
| Vessel Type | Self-propelled Trailing Suction Hopper Dredger |
| Dredger Name | ZHONG 16 |
| Year Built | 2012 |
| Classification | CCS (China Classification Society) |
| Navigation Area | Coastal (A1 + A2) |
| Length Overall | 99.5 m |
| Breadth | 18.0 m |
| Depth | 7.7 m |
| Full Load Draft | 7.1 m |
| Hopper Capacity | 4,641 m³ |
| Dredging Depth | Max. 30 m |
| Main Engine Power | 1,471 kW × 2 sets |
| Mud Pump Engine | 1,250 kW × 2 sets |
| Bow Blowing Distance | ≥ 2 km |
| Dredging Speed | ~3 knots |
| Sailing Speed | 11.5 knots |
| Mud Loading Time | ~50 min |
| Mud Unloading Time | ~20 min |
| Control System | Fully automatic centralized control |
— Application
Maintenance and deepening of coastal ports and navigation channels
Land reclamation and port basin dredging
Coastal and offshore trenching or seabed leveling projects
Suitable for various materials including clay, sand, silt, and mixed soils
— Product Features
High Efficiency: Strong dredging power with optimized pump performance.
Automation: Fully automatic control and satellite dredging monitoring system.
Energy Saving: Low fuel consumption through advanced variable-frequency pump system.
Precision: Accurate dredging control and efficient hopper utilization.
Flexibility: Equipped with bow-blowing system for long-distance material discharge.
Reliability: Robust CCS-certified design ensuring safe and stable operation.
— Technical Specifications
| Item | Specification |
| Vessel Type | Self-propelled Trailing Suction Hopper Dredger |
| Dredger Name | ZHONG 16 |
| Year Built | 2012 |
| Classification | CCS (China Classification Society) |
| Navigation Area | Coastal (A1 + A2) |
| Length Overall | 99.5 m |
| Breadth | 18.0 m |
| Depth | 7.7 m |
| Full Load Draft | 7.1 m |
| Hopper Capacity | 4,641 m³ |
| Dredging Depth | Max. 30 m |
| Main Engine Power | 1,471 kW × 2 sets |
| Mud Pump Engine | 1,250 kW × 2 sets |
| Bow Blowing Distance | ≥ 2 km |
| Dredging Speed | ~3 knots |
| Sailing Speed | 11.5 knots |
| Mud Loading Time | ~50 min |
| Mud Unloading Time | ~20 min |
| Control System | Fully automatic centralized control |
— Application
Maintenance and deepening of coastal ports and navigation channels
Land reclamation and port basin dredging
Coastal and offshore trenching or seabed leveling projects
Suitable for various materials including clay, sand, silt, and mixed soils
— Product Features
High Efficiency: Strong dredging power with optimized pump performance.
Automation: Fully automatic control and satellite dredging monitoring system.
Energy Saving: Low fuel consumption through advanced variable-frequency pump system.
Precision: Accurate dredging control and efficient hopper utilization.
Flexibility: Equipped with bow-blowing system for long-distance material discharge.
Reliability: Robust CCS-certified design ensuring safe and stable operation.
