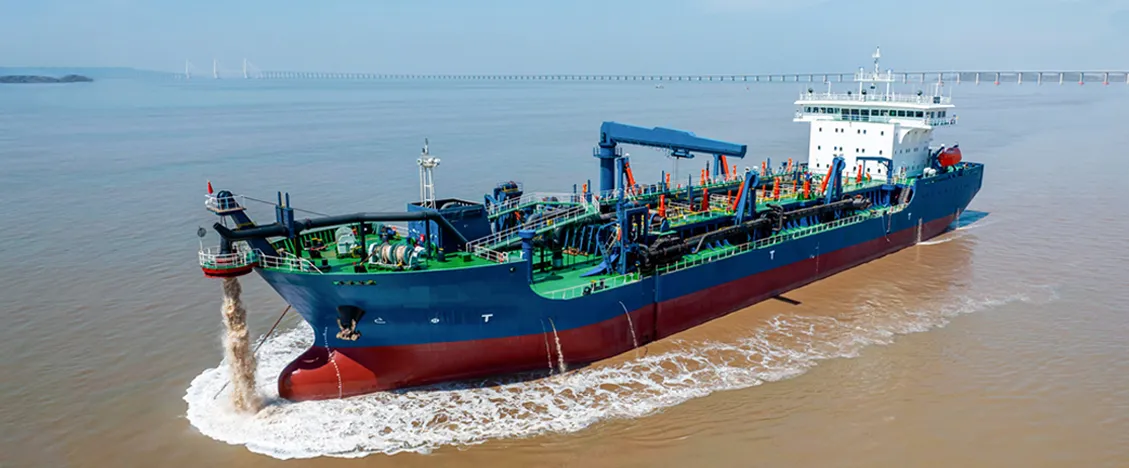

9000 m³/h Trailing Suction Hopper Dredger (TSHD)
The 9000 m³/h Trailing Suction Hopper Dredger is a high-capacity, heavy-duty vessel designed for large-scale dredging projects, including ports, channels, rivers, and land reclamation. It provides maximum dredging efficiency with robust hull construction and durable machinery capable of operating in deep-water and demanding conditions. Advanced automation and high-capacity suction systems ensure continuous, large-volume operations.
The 9000 m³/h Trailing Suction Hopper Dredger is a high-capacity, heavy-duty vessel designed for large-scale dredging projects, including ports, channels, rivers, and land reclamation. It provides maximum dredging efficiency with robust hull construction and durable machinery capable of operating in deep-water and demanding conditions. Advanced automation and high-capacity suction systems ensure continuous, large-volume operations.
— Technical Specifications
| Item | Parameter |
| Dredging capacity | ~9,000 m³/day |
| Hopper capacity | 9,000 m³ (nominal) |
| Dredging depth | 20 – 30 m (typical) |
| Hull length (LOA) | 100 – 120 m |
| Beam (Width) | 18 – 22 m |
| Draft | 5 – 7 m |
| Displacement / Deadweight | 8,000 – 12,000 t (approx.) |
| Dredge pump type | Heavy-duty centrifugal slurry pump (inboard) |
| Pump flow rate | 3,000 – 4,500 m³/h |
| Pump head (delivery) | 30 – 90 m |
| Suction pipe diameter | 700 – 1,000 mm |
| Maximum pumping distance | 3,000 – 5,000 m (with booster optional) |
| Power system | Diesel engines, total 7,000 – 10,000 kW |
| Winches | 4 – 6 sets, pull force 200 – 350 kN |
| Navigation speed | 12 – 14 knots |
| Crew capacity | 20 – 28 persons |
| Control system | PLC + HMI, GPS/RTK positioning, dredging monitoring system |
| Classification | IACS member class (ABS / DNV / LR, or as required) |
| Safety & Environment | SOLAS / MARPOL compliant, oil-water separator, fire-fighting system |
— Application
1. Inland & Nearshore Channel Maintenance
- Maintaining navigable waterway depths in major rivers and nearshore areas.
2. Coastal Port Dredging
-Increasing port capacity and supporting major expansion projects.
3. Deep-Water Channel Expansion
-Widening and deepening main channels for large vessels such as container ships and oil tankers.
4. Offshore Works & Land Reclamation
-Supporting offshore constructions (wind farms, oil & gas platforms).
-Excavating, transporting, and placing sand for land reclamation and artificial islands.
5. Large-Scale Infrastructure Projects
-Dredging and infilling for major ports, industrial zones, and urban reclamation projects.
6. Ultra-Deepwater Projects
-Dredging in depths of 60–100+ meters; suitable for oilfield channels and specialized marine passages.
— Key Features / Advantages & Customization
- Technical Configuration:
Submerged pump installation can enhance dredging depth by 30–50%, enabling deep-water operations.
- Geological Adaptability:
Efficient in soft to medium sediments; power adjustment for harder clay or compact soils.
- Environmental Compliance:
Meets EU Tier IV emission standards; power optimization maintains efficiency and environmental performance.
- Advanced automation and safety systems; high-capacity suction and dredging units; robust hull and machinery.
