USED TSHD3

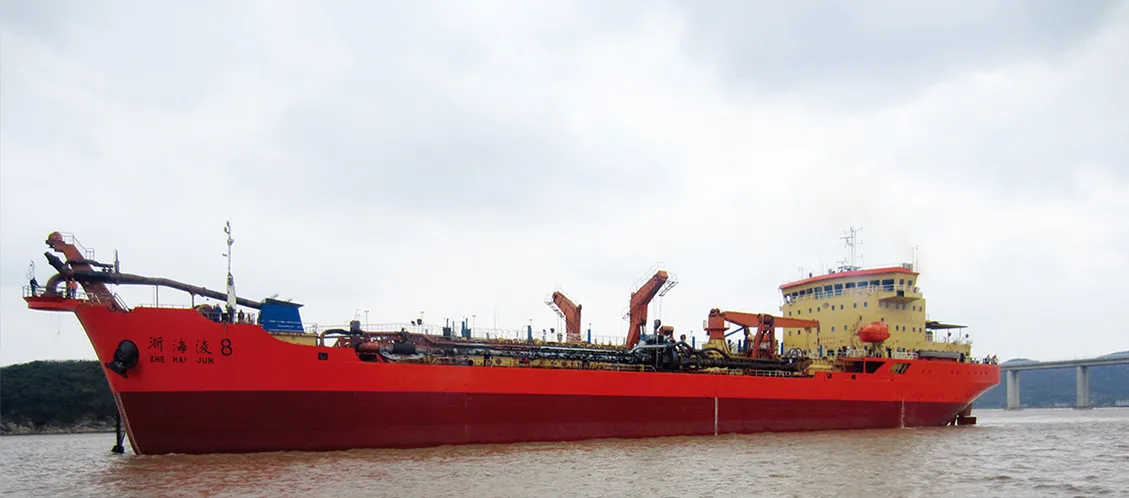

TSHD 2 is a large self-propelled trailing suction hopper dredger designed and manufactured in China.
It features twin engines, twin propellers, twin rudders, and twin dragheads with bow-blowing capability.
The forward-inclined bow and square twin-engine stern provide stable performance and maneuverability.

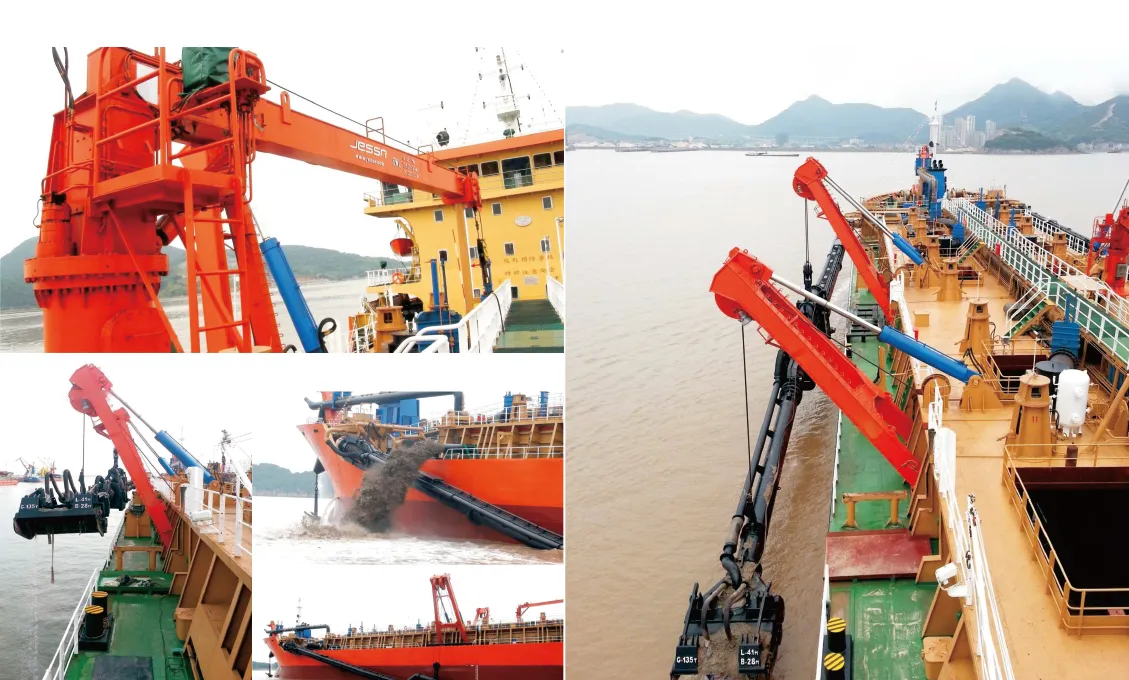

The active hydraulic draghead with adjustable rake tongue and high-pressure flushing system allows efficient dredging of clay, dense sand, coarse sand, and silt.
It is ideal for maintenance and construction dredging in offshore areas within 20 nautical miles.
TSHD 2 is a large self-propelled trailing suction hopper dredger designed and manufactured in China.
It features twin engines, twin propellers, twin rudders, and twin dragheads with bow-blowing capability.
The forward-inclined bow and square twin-engine stern provide stable performance and maneuverability.
The active hydraulic draghead with adjustable rake tongue and high-pressure flushing system allows efficient dredging of clay, dense sand, coarse sand, and silt.
It is ideal for maintenance and construction dredging in offshore areas within 20 nautical miles.
— Technical Specifications
| Item | Specification |
| Vessel Type | Self-propelled Trailing Suction Hopper Dredger |
| Design & Manufacture | Made in China |
| Power Configuration | Twin engines, twin propellers, twin rudders, twin dragheads |
| Length Overall | 126.7 m |
| Breadth | 23 m |
| Depth | 10 m |
| Full Load Draft | 7.6 m |
| Hopper Capacity | 9,112 m³ |
| Maximum Dredging Depth | 30 m |
| Bow Discharge Distance | 2.5 km |
| Gross Tonnage | 8,678 t |
| Port of Registry | Zhoushan |
| Completion Date | 21-Nov-08 |
| Navigation Area | Offshore navigation area (within 20 nautical miles) |
| Main Engine | 8N350ZLC, 4778 kW × 2 sets |
| Generator Set | 1FC6564-5SA42, 500 kW × 3 sets |
| Auxiliary Generator | TFXW-250M4-H, 90 kW × 1 set |
| Dredge Pump Engine | G6300ZC34B, 1800 kW × 2 sets |
| Dredge Pump Motor | SB-HW4-1400-8P, 1400 kW × 2 sets |
| Auxiliary Diesel Engine | H12V190ZLCD1, 1500 kW × 2 sets |
| Draghead Size | 4.0 m × 3.1 m |
| Draghead Weight | 13.6 t |

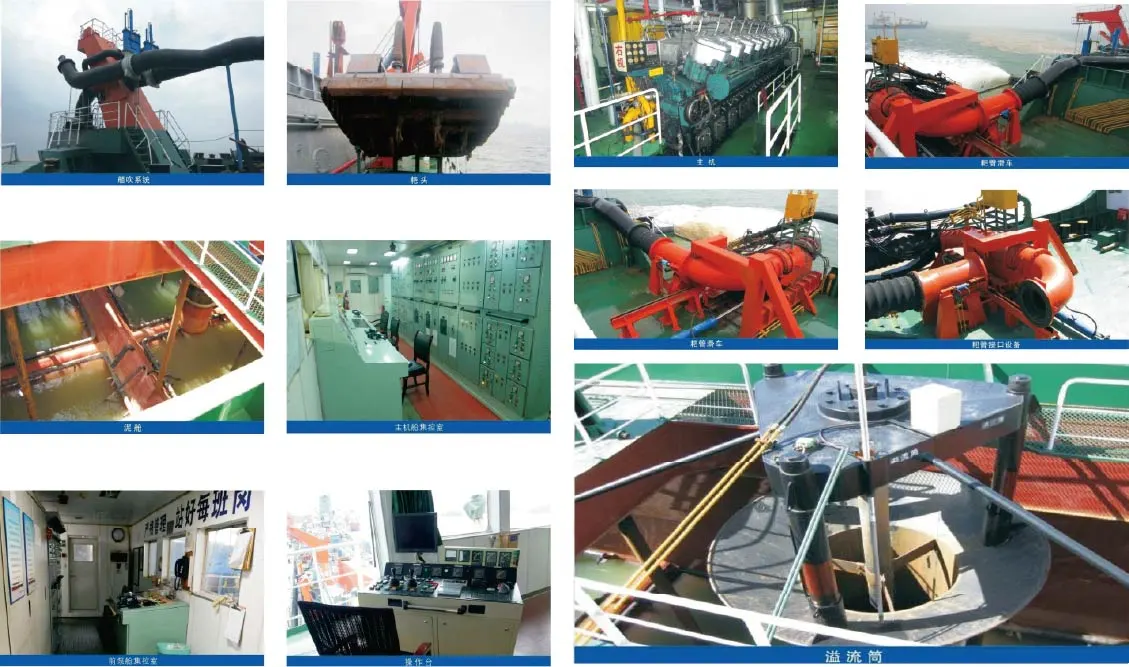

| Measuring & Navigation System | Equipped with dredging density meter, flow meter, production meter, and other 8 measuring instruments |
— Application
Port and channel dredging and maintenance
Deep-water channel construction
Coastal reclamation and offshore construction projects
— Product Features
Large hopper capacity suitable for long-duration, heavy-duty dredging
Active hydraulic draghead with high-pressure flushing for diverse soil conditions
Complete onboard measuring and control systems for efficient dredging management
Reliable twin-engine configuration with heavy fuel compatibility
Proven stability and operational performance in offshore dredging projects
— Technical Specifications
| Item | Specification |
| Vessel Type | Self-propelled Trailing Suction Hopper Dredger |
| Design & Manufacture | Made in China |
| Power Configuration | Twin engines, twin propellers, twin rudders, twin dragheads |
| Length Overall | 126.7 m |
| Breadth | 23 m |
| Depth | 10 m |
| Full Load Draft | 7.6 m |
| Hopper Capacity | 9,112 m³ |
| Maximum Dredging Depth | 30 m |
| Bow Discharge Distance | 2.5 km |
| Gross Tonnage | 8,678 t |
| Port of Registry | Zhoushan |
| Completion Date | 21-Nov-08 |
| Navigation Area | Offshore navigation area (within 20 nautical miles) |
| Main Engine | 8N350ZLC, 4778 kW × 2 sets |
| Generator Set | 1FC6564-5SA42, 500 kW × 3 sets |
| Auxiliary Generator | TFXW-250M4-H, 90 kW × 1 set |
| Dredge Pump Engine | G6300ZC34B, 1800 kW × 2 sets |
| Dredge Pump Motor | SB-HW4-1400-8P, 1400 kW × 2 sets |
| Auxiliary Diesel Engine | H12V190ZLCD1, 1500 kW × 2 sets |
| Draghead Size | 4.0 m × 3.1 m |
| Draghead Weight | 13.6 t |
| Measuring & Navigation System | Equipped with dredging density meter, flow meter, production meter, and other 8 measuring instruments |
— Application
Port and channel dredging and maintenance
Deep-water channel construction
Coastal reclamation and offshore construction projects
— Product Features
Large hopper capacity suitable for long-duration, heavy-duty dredging
Active hydraulic draghead with high-pressure flushing for diverse soil conditions
Complete onboard measuring and control systems for efficient dredging management
Reliable twin-engine configuration with heavy fuel compatibility
Proven stability and operational performance in offshore dredging projects
